Description

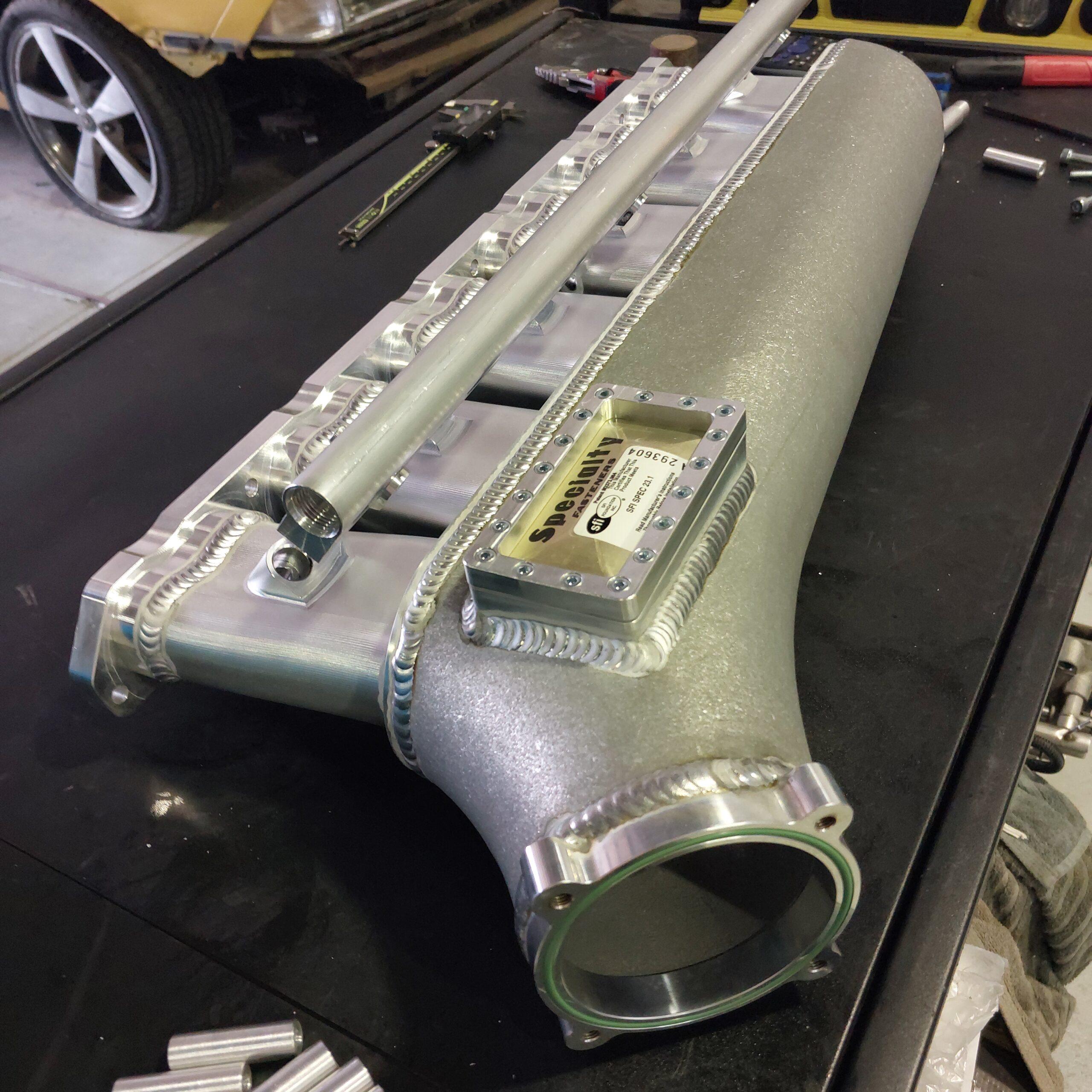

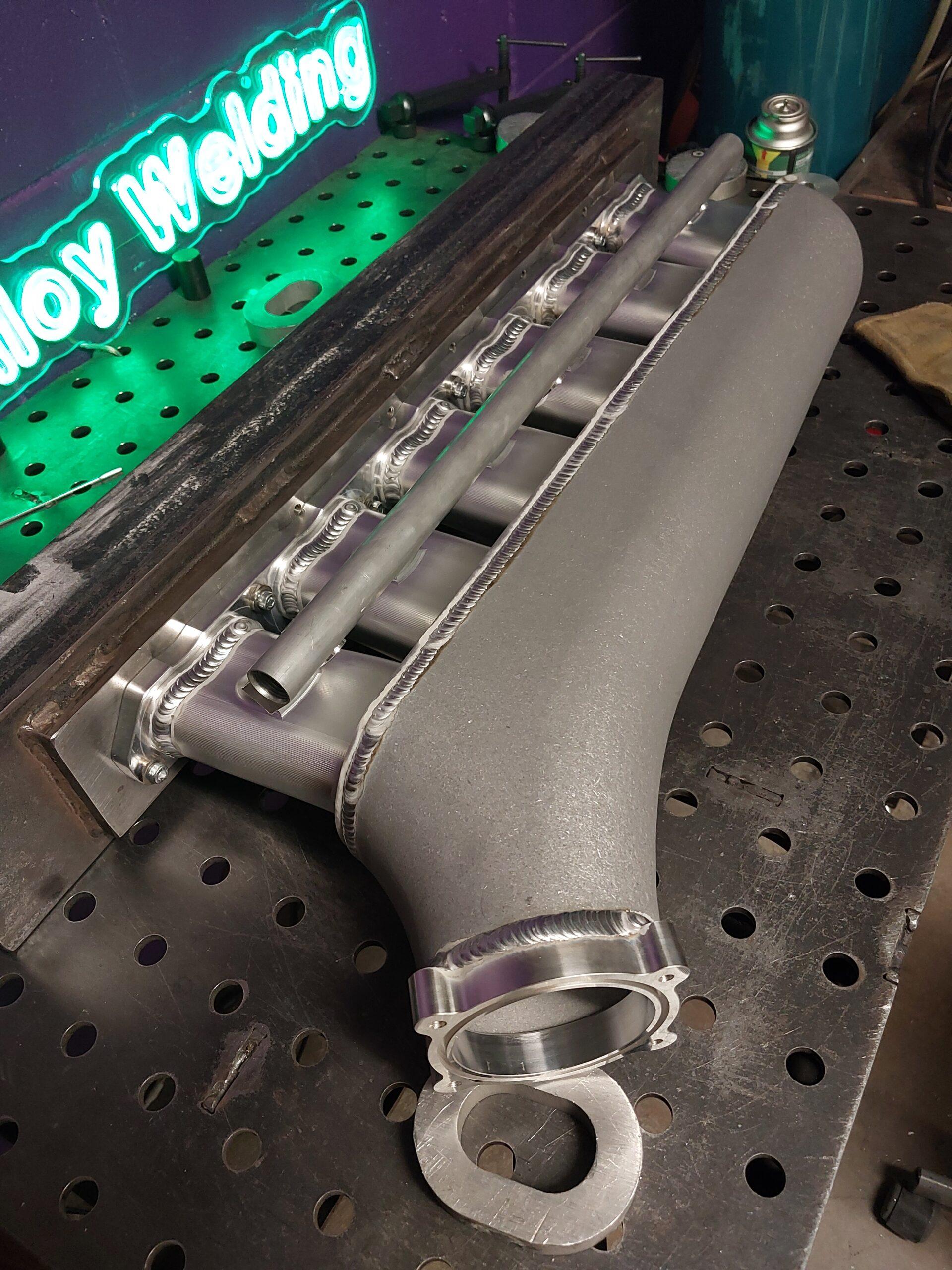

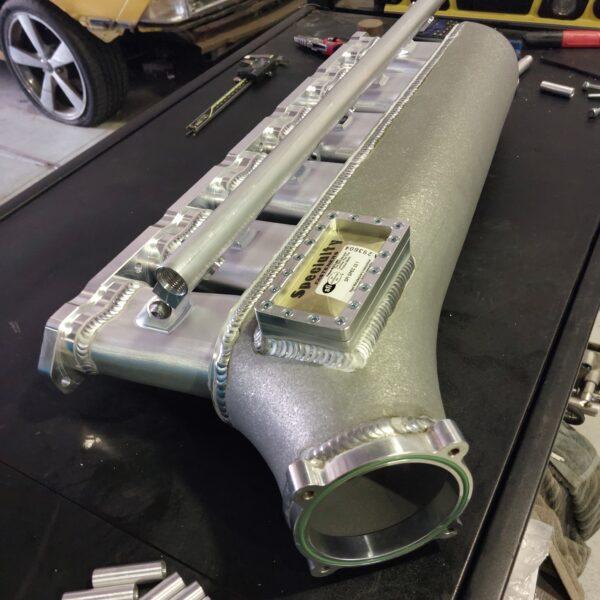

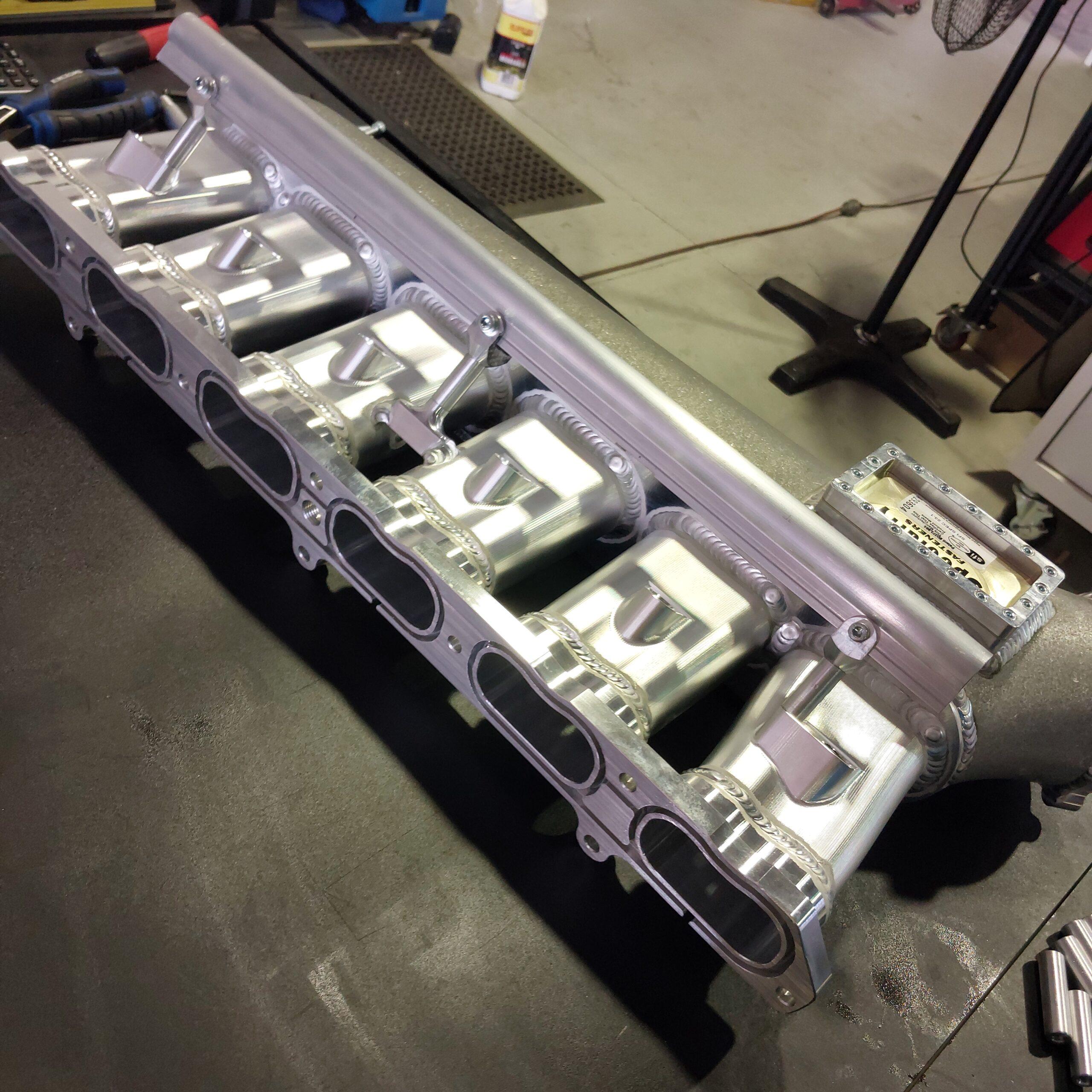

Front facing intake manifold for the GM atlas 4200. These feature a billet head flange, billet runners, billet base plate with a cast plenum top. The head flange is machined for the oem gasket. Choice of Bosch drive by wire throttle body flange and Bosch map sensor outlet or no throttle body flange and no map sensor outlet (alternative throttle body flange can be added on request stock/ls etc). Vac block on underside with 2x -4 orb and 2x -6 orb ports. Comes with kit to lower alt down out of the way of intake.
Comes with the following
1x Front facing intake
1x Custom -6 breather fitting
1x standard alt lowering kit
Optional extras
Burst panel
fuel rail with hardware and 6 injector bungs welded to runners
